How do coil types in different vape devices affect wicking speed?

Wicking speed is not a single property; it is the result of the interaction between coil geometry, wicking material, and the mode of operation of the vape devices. Therefore, we need to analyze the wicking speed of mesh, ceramic, and cotton materials in different vape devices, including pod kits in the low-power range, pod mods in the mid-power range, and box mods in the high-power range. Finally, I will provide clear and easy-to-understand user recommendations for startup, coil selection, and troubleshooting so that you can choose the appropriate coil, wattage, and e-liquid viscosity for your specific use case.

The Physics of Wicking in Vape Devices

Fluid mechanics and materials science govern wicking speed. Wicking transport occurs through capillary action, where liquid is drawn into the wick through tiny pores driven by surface tension and wetting forces. Several variables control wicking rate:

Pore size and porosity: Smaller pores increase capillary pressure, allowing for faster liquid absorption over short distances; however, they also reduce permeability and may restrict overall flow. Cotton wicks have a wide distribution of pore sizes, while engineered fiber wicks have a tighter, more tunable porosity.

Wettability of the wicking material: The contact angle between the e-liquid and the wicking fibers determines how effectively the liquid spreads. Most common e-liquids (PG/VG blends) readily wet cellulose and rayon, while ceramics and porous metals require different surface treatments or pre-wetting to achieve optimal performance.

Heat flux on the coil surface: The wicking system must supply liquid quickly enough to balance evaporation. Heat flux is expressed in watts per unit area; high flux requires breakneck wicking speeds or a larger reservoir. Mesh coils and low-mass coils distribute heat over a larger surface area, reducing localized flux and making wicking easier.

E-liquid viscosity and temperature: Higher vegetable glycerin (VG) content increases viscosity and slows capillary flow, especially at the low temperatures typical in pouch-based vaping devices. A warmer coil assembly can reduce viscosity and speed up wicking, but can also accelerate degradation if not properly matched.

Coil Types and Wicking Characteristics in Low-Power Vape Devices

Among vape device, pod kits prioritize compactness, simplicity, and quiet operation. In the 10W-30W wattage range, wicking speed requirements are typically moderate: heat flux is low, coil area is small, and the goal is consistent flavor with minimal maintenance. The main coil designs and their wicking characteristics in pod kits are as follows:

1. Traditional Wire Coil with Cotton Wick:

These are still common in refillable pods and micro RBA-style pods. Cotton wick’s porosity and excellent wettability with PG/VG blends make it a reliable wicking material for low to medium wattages. In pod kits, the lower coil mass and shorter wicking length facilitate capillary oil contact with the atomizer, resulting in rapid saturation and good warm-up. However, cotton wicks are prone to dry burns if the user pulses aggressively or uses e-liquids with a high VG content and insufficient soaking time.

2. Mesh Coil:

Mesh coils are very popular in pod kits because they provide a large, continuous contact surface and even heating. Their wicking properties vary: rather than relying on a central cotton wick, many pod designs employ thin strips of cotton or fabric in contact with the mesh coil surface, or use foam as a reservoir behind the mesh coil. Furthermore, mesh coils combined with foam coils can achieve extremely fast wicking speeds and consistent vapor.

3. Ceramic or Porous Ceramic Coils:

Some pod kits use ceramic or ceramic-coated coils, which wick through micropores in the ceramic matrix. At low wattage, ceramic coils offer a neutral flavor and high thermal stability. While wicking speed is slower than foam-mesh combinations, their moderate heat flux makes them sufficient for many pod kits. Ceramic coils are more suitable for high-VG blends when used with a thin oil film or pre-soaking strategy.

Coil Types and Wicking Behavior for Mid-Power Vape Devices

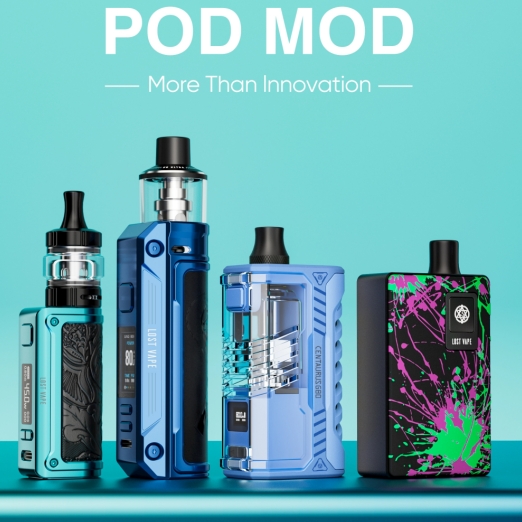

Pod mods feature a higher power window, adjustable airflow, and typically larger reservoirs or tanks. When wattage reaches 30-80W, wicking speed becomes a key limiting factor, as heat flux increases and the coil must extract more liquid per second. Key coil types and wicking strategies for these devices include:

1. Larger Mesh Components and Thicker Reservoir Materials:

At wattages between 30-80W, many e-cigarette brands increase the mesh component area and typically use denser, more porous foam or multi-layer fiber wicks. This increases the evaporation surface area and the amount of liquid stored per unit time. The uniform heating of the mesh component reduces local hot spots, making wicking less likely to burn, even at higher draw rates.

2. Multi-core and Clapton-style Coils with Optimized Wicking Paths:

Some pod mods allow for the use of replaceable coil heads with fused Clapton or multi-core coils. These coils feature complex geometries, increasing surface area but also increasing localized hot spots if the wick is insufficient. To address this, e-cigarette brands design larger wick channels and use wicks with shorter capillary paths.

3. Porous Ceramic or Sintered Wick with Mesh:

Premium pod mods sometimes combine a porous ceramic carrier with a wrapped heating element or mesh cover. Ceramic helps improve heat resistance and reduces flavor decay at higher temperatures. In principle, wicks through ceramic have slower absorption rates, so designers ensure sufficient surface contact and a larger oil reservoir.

Coil Types and Wicking Behavior in High-Power Box Mods Under Extreme Heat Flow Conditions

Box mods feature high heat flow and highly variable user behavior, including straight-in, continuous puffs, and rapid, continuous draws. These conditions place extreme demands on wicking speed, oil supply, and thermal management. The coils and wicking strategies used here are specialized:

1. Large Mesh and Plate Coils with High-Volume Wicking Capacity:

At very high wattages, mesh panels or stacked mesh structures paired with large reservoirs offer a combination of low surface flux and high liquid throughput. This increased coil surface area results in lower wattage per square centimeter at the same wattage. The wicking material must move large volumes of liquid quickly; compressed cotton alone is often insufficient unless strategically directed.

2. Air-Core Coils and Internal Liquid Feed Designs:

Some high-wattage rigs utilize air-core coil designs or chimney-style wicks, which direct liquid flow to the hottest areas via gravity-assisted channels. These designs reduce lateral capillary distance, resulting in faster liquid feed.

3. Sintered Porous Metal and Specialty Ceramics:

In industrial and extreme vapor configurations, sintered metal or high-porosity ceramics utilize distributed permeation for wicking, enabling high sustained output with minimal performance degradation. They are durable and resistant to scorching, but require compatible liquid and cleaning procedures.

4. Cooling, Power Regulation, and Safety Mechanisms:

High-wattage designs also rely on active engineering controls to mitigate wicking deficiencies: temperature cutoffs, preheat ramps, and advanced coil performance analysis in the firmware. These features reduce the likelihood of dry burns while achieving strong performance.

Choosing the appropriate coil strategy based on device type

Wicking speed is not just a coil characteristic; it is also a combination of coil geometry, wicking material, e-liquid viscosity, and device thermal conditions. For pod kit use, mesh + foam or small cotton wicks offer fast, forgiving wicking and provide an excellent user experience with medium-VG e-liquids. In pod mods, key features include scaled mesh, larger wicking reservoirs, and optimized airflow. Multi-wire coils can be effective if the wicking channels are short and plentiful. For box mods, you must significantly increase the coil surface area to reduce localized heat flux or deploy specialized wicking to deliver the desired e-liquid rate.
